VX800I2

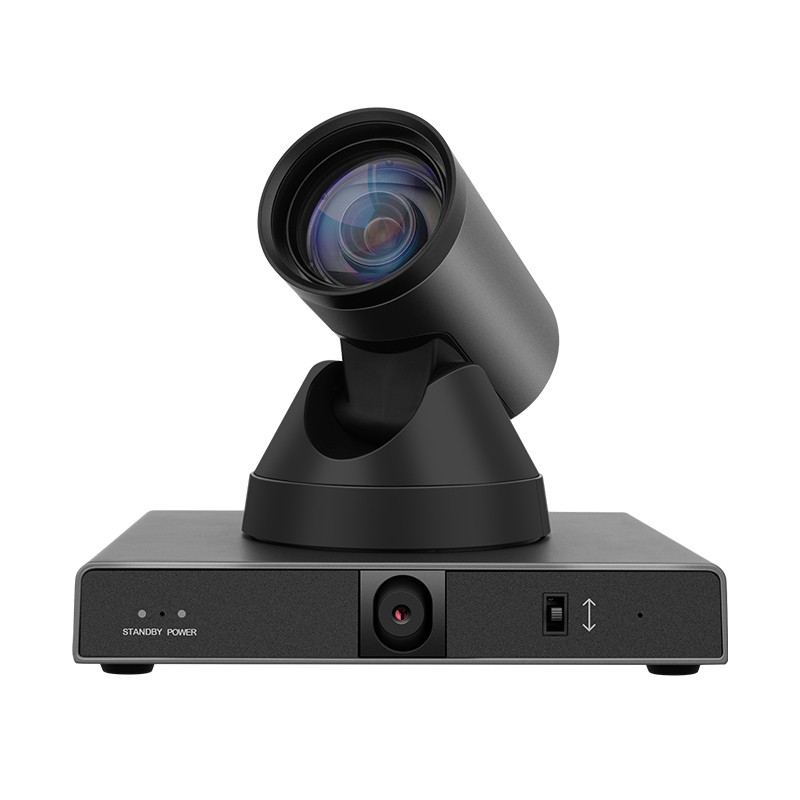

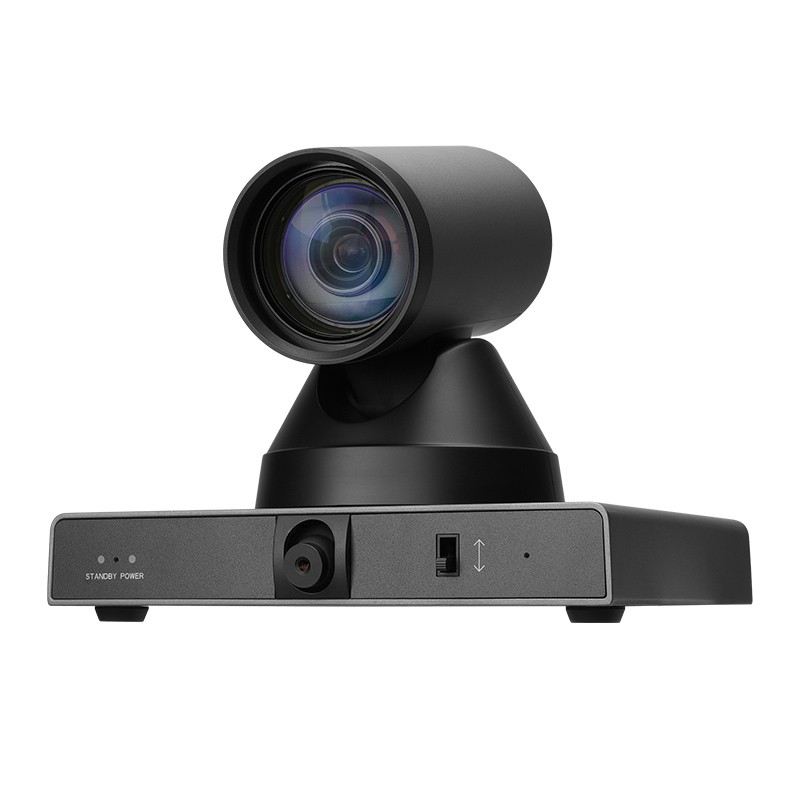

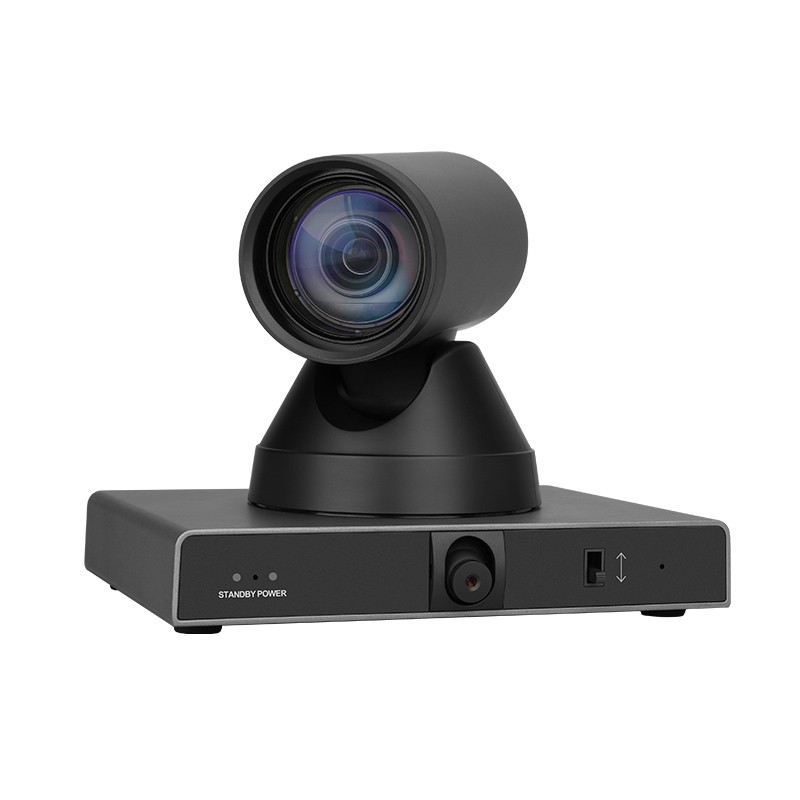

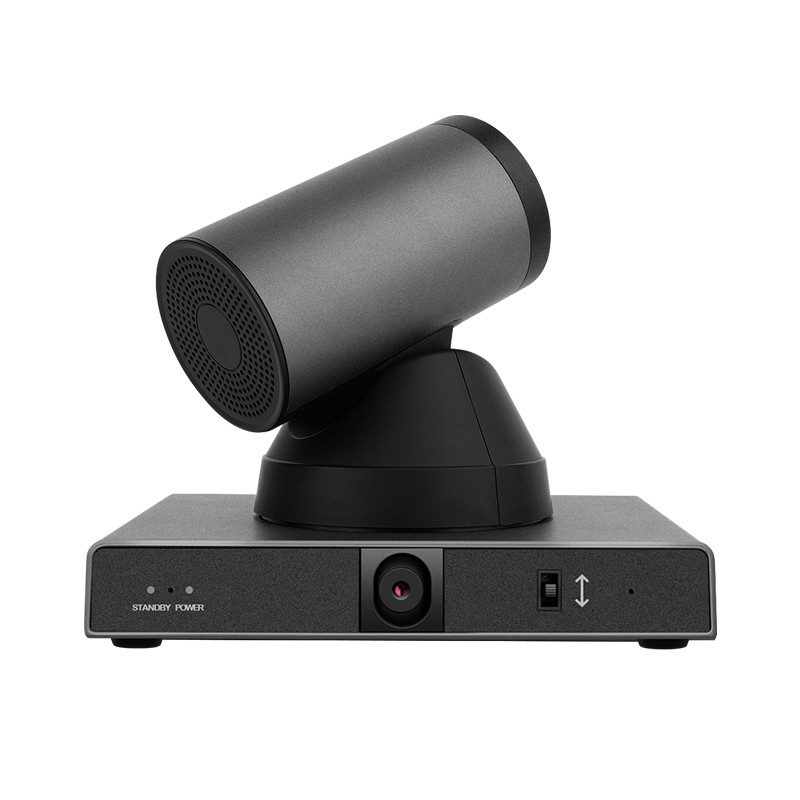

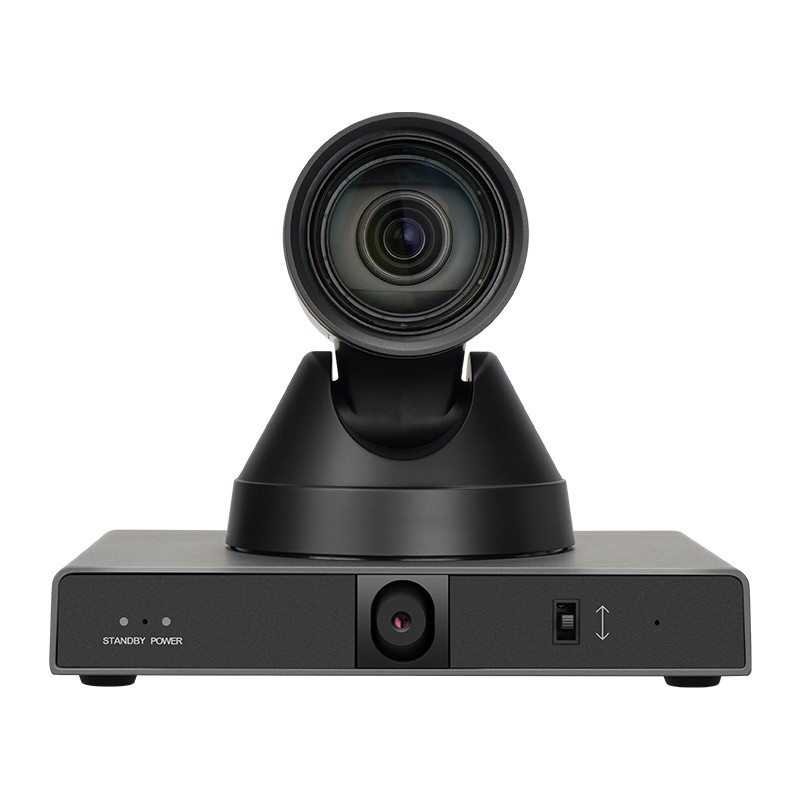

Designed for executive-level meetings, educational recordings, and more, the VX800I2 features built-in 4K dual  lenses for clear images. Equipped with AI auto-framing, voice tracking, and intelligent switching algorithms, it  accurately captures scenes without manual intervention, seamlessly transitioning between panoramic and closeup views to meet diverse requirements.

·Integrated Design

The unit adopts a panoramic and close-up dual-lens design, simultaneously  outputting multiple streams of panoramic and close-up video, capturing  more details during interactive teaching processes.


·4K Images

Both the panoramic and close-up lenses utilize a 1/2.5-inch 4K  UHD CMOS image sensor, enabling superior quality images at 4K  (3840×2160) resolution. It is also compatible with various resolutions  such as 1080P and 720P.


·Wide-Angle Long Zoom

The panoramic cameras provide optional 48° and 107° wide-angle  lenses for capturing panoramic shots of teachers and students. The  close-up cameras, with a 71° field of view and a 12× optical zoom lens,  capture clear close-up shots of teachers and students.


·AI Assisted Shooting

Support two modes of teaching tracking and meeting tracking. Teaching tracking: without any auxiliary positioning camera or tracking host  can realize smooth and natural tracking shooting of teachers or students;  Conference tracking: automatically adjust the lens according to changes  in the position of the conference personnel, can also be locked according  to the location of the sound source to give the speaker a close-up shot, to  meet the needs of all kinds of conference scene shooting.


·Built-in Microphone Array

Equipped with a microphone array that captures audio from all directions,  with a pickup distance of up to 6 meters. The unique noise suppression  algorithm ensures perfect audio reproduction.(The maximum pickup distance is based on testing in the VHD Laboratory  and may vary in actual user environments.)


·Built-in Gravity Sensor(optional)

Supports automatic image flipping, providing convenience for engineering  installation and use.


·Multiple Interfaces

Supports HDMI 1.4b for HD output, equipped with a 3G-SDI interface  for effective transmission over distances of up to 150 meters (1080P30).  Simultaneously outputs 4 cha

Camera Spec of Close-up Camera

Signal System

HDMI:4KP30, 4KP25, 4KP29.97, 1080P30,  1080P25; SDI:1080P30, 1080P25;

Sensor

1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels

Scanning Mode

Progressive

Lens

12x, f=4.4mm~52.8mm, F1.8~F2.6

Digital Zoom

16×

Minimum Illumination

0.5Lux @ (F1.8, AGC ON)

Shutter

1/30s ~ 1/10000s

White Balance

Auto, Indoor, Outdoor, One Push, Manual, VAR

Backlight Compensation

Support

Digital Noise Reduction

3D Digital Noise Reduction

SNR

≥ 55dB

Horizontal FOV

71° ~ 8.2°

Vertical FOV

42.7° ~ 4.5°

Pan Angle

±170

Tilt Angle

±30°

Pan Speed

1.61° ~ 75.56° /s

Tilt Speed

0.44° ~ 15° /s

Image Flip

Support

Image Freeze

Support

Preset Position

255

Preset Accuracy

0.1°

Camera Spec of Panoramic Camera

Signal System

HDMI:4KP30, 4KP25, 4KP29.97, 1080P30,  1080P25; SDI:1080P30, 1080P25;

Sensor

1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels

Scanning Mode

Progressive

Type of Lens Mount

M12

Lens I

Focal length: f=8.0mm, Horizontal FOV: 48°

Lens II

Focal length: f=1.97mm, Horizontal FOV: 107°

Minimum Illumination

0.5 Lux @ (F1.8, AGC ON)

Shutter

1/30s ~ 1/10000s

White Balance

Auto, Indoor, Outdoor, One Push, Manual, VAR

Digital Noise Reduction

3D Digital Noise Reduction

Backlight Compensation

Support

Image Freeze

Support

Image Flip

Support

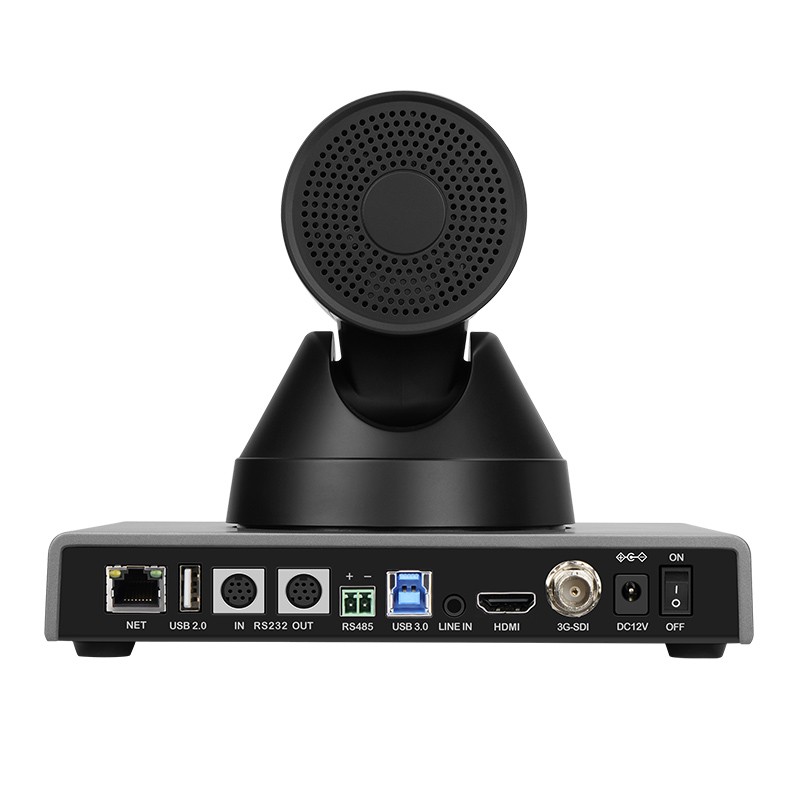

I/O

HD Output

1 x HDMI, Version 1.4b; 1 x 3G-SDI: BNC, 800mVp-p, 75Ω, as per  SMPTE 424M standard

Network interface

1 x RJ45: 10M / 100M /1000M adaptive Ethernet;  PoE+ supported

Audio Interface

1 x LINE In: 3.5mm Jack

USB Interface

1 x USB 3.0: Type-B ; 1 x USB2.0: Type-A

Control Interface

1 x RS485: 2pin phoenix port, Max Distance:  1200m, Protocol: VISCA / Pelco-D / Pelco-P 1 x RS232 IN: 8pin Mini DIN, Max Distance:  30m, Protocol: VISCA / Pelco-D / Pelco-P 1 x RS232 OUT: 8pin Mini DIN, Max Distance:  30m, Protocol: VISCA only

Power Interface

1 x DC-005/Φ2.0 type (DC IN 12V)

Network Spec

Video Compression

H.265 / H.264 / MJPEG

Video Stream

First Stream, Second Stream,  Third Stream, Fourth Stream

First Stream, Second  Stream Resolution

3840x2160,1920x1080,1280x720,1024x576 etc.

Third Stream, Fourth  Stream Resolution

720x480, 320x240 etc.

Video Bit Rate

32kbps~51200kbps

Bit Rate Control

VBR, CBR

Frame Rate

50Hz: 1fps~25fps, 60Hz:1fps~30fps

Audio Compression

AAC、G711A

Audio Bit Rate

48Kbps,64Kbps,96Kbps,128Kbps

Protocols

NDI®|HX2,SRT,TCP/IP,HTTP,RTSP,RTMP/ RTMP(s),Onvif,DHCP,GB/T28181,Multicast etc.

USB Spec

Operating System  Supported

Windows 7 (only supports UVC1.1 features), Windows  8 and above version, Mac OS X, Linux 2.4.6 and  above version, Android needs to include the version  of UVC-related drivers

Color System /  Compression

YUV / H.264 / MJPEG /NV12

Video Format

YUY2: Max.1080P30; H.264 AVC: Max.2160P30; H.265 HEVC: Max.2160P30; MJPEG: Max.2160P30

USB Audio

Support

USB Video  Communication Protocol

UVC 1.1~1.5

UVC PTZ Control

Support

Generic Spec

Input Voltage

DC 12V/PoE+(802.3at)

Input Current

2A(Max.)

Operating Temperature

-10° C ~ 40° C

Storage Temperature

-40° C ~ 60° C

Power Consumption

18W(Max.)

Dimension

200mm (W) x 177mm (D) x 165mm (H)

Net Weight

1.76kg
