4K UHD
Using 1/2.5-inch high-quality UHD CMOS sensor with a maximum of 8.51 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions.
71° Wide-angle Lens + 12x Optical Zoom
Customized high quality real 8 million ultra high resolution 4K lens, 12x optical zoom, maximum 71° viewing angle.
HDMI1.4b
It supports HDMI 1.4b version, and can output 4K uncompressed original video.
Multiple Interfaces
Support HDMI and 3G-SDI interface, effective transmission distance of 3G-SDI is up to 150 meters (1080P30). HDMI, LAN or 3G-SDI, LAN can output 2 high-definition digital signals at the same time.
Low Power Sleep
It supports low-power sleep/wake-up and consumes less than 400mW in sleep mode.
Low Illumination
The application of 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keeps the picture clean and clear, and the SNR of image is as high as 55dB.
Remote Control
Support a variety of control methods, you can use RS232, RS485, network and USB to control the camera.
Built-in OLED Screen
It can display HDMI and SDI (SDI cannot display 4K) output resolution, IP address and other information.
USB3.0
The optional USB3.0 interface can transmit uncompressed original video images and is backward compatible with USB2.0.

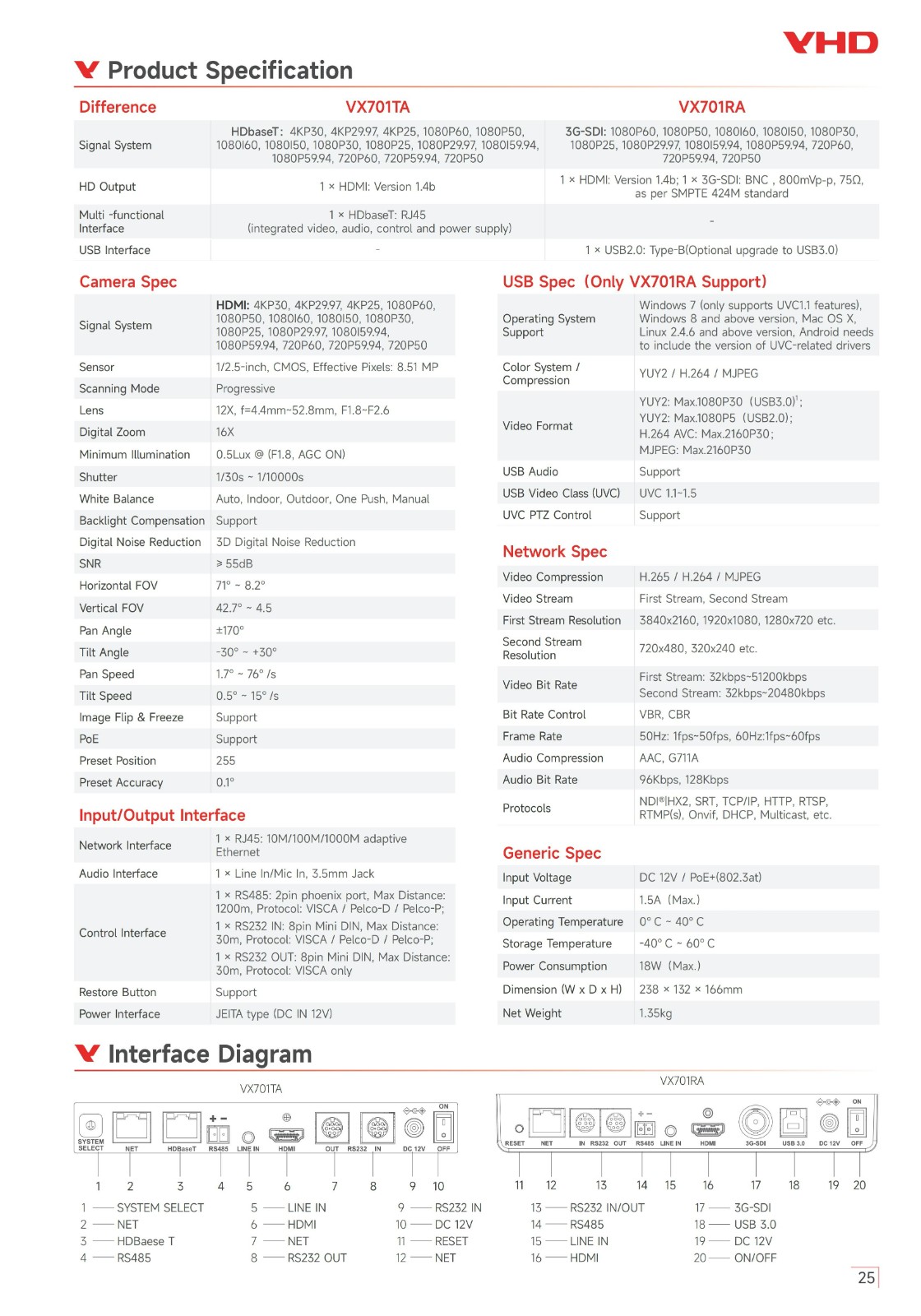

Model | VX701RA |
Name | 4K30P Professional PTZ Camera |
Camera | |
Singal System | HDMI: 4K/30, 4K/29.97 , 4K/25; 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 750p/50; 3G-SDI: 1080p/60, 1080i/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25,1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50 |
Sensor | 1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels |
Scanner Mode | Progressive |
Focal length | 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
Digital Zoom | 16x |
Minimum Illumination | 0.5Lux @ (F1.8, AGC ON) |
Shutter | 1/30s ~ 1/10000s |
White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
Backlight Compensation | Support |
Digital Noise Reduction | 3D Digital Noise Reduction |
SNR | ≥55dB |
Horizontal FOV | 71° ~ 8.2° |
Vertical FOV | 42.7° ~ 4.5° |
Pan Angle | ±170° |
Tilt Angle | ±30° |
Pan Speed | 1.60° ~ 76° /s |
Tilt Speed | 0.5° ~ 15° /s |
Image Flip | Support |
Image Freeze | Support |
PoE+ | Support |
Preset Position | 255 |
Preset Accuracy | 0.1° |
USB Features | |
Operating System Supported | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
Color System / Compression | YUV 4:2:2 / H.264 / MJPEG / NV12 |
Video Format | YUY2 : Max. 1080p/30(USB3.0) 1; YUY2 : Max. 1080p/5(USB2.0); H.264 : Max. 2160p/30; H.265 HEVC: Max. 2160p/30; MJPEG: Max. 2160p/30 |
USB Audio | Support |
USB video Communication Protocol | UVC 1.1 ~ UVC 1.5 |
UVC PTZ Control | Support |
Interfaces | |
HD Output | 1 x HDMI: Version 1.4b; 1x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard |
Network Interface | 1x RJ45: 10M/100M/1000M adaptive Ethernet, PoE Support |
Jack | 1x Line In/Mic In, 3.5mm Jack |
USB Interface | 1 x USB2.0,Type-B (Optional upgrade to USB3.0) |
Communication Interface | 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only |
Power Interface | JEITA type (DC IN 12V) ） |
Reset Interface | Restore factory settings |
Network Features | |
Video Compression | H.264 / MJPEG / H.265 |
Video Stream | First Stream, Second Stream |
First Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576 etc. |
Second Stream Resolution | 720x480, 720x408, 640x480, 640x360, 480x320, 320x240 etc. |
Video Bit Rate | First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps |
Bit Rate Control | VBR, CBR |
Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
Audio Compression | AAC、G711A |
Audio Bit Rate | 96kbps, 128kbps |
Protocol | TCP/IP, HTTP, RTSP, RTMP/RTMPS, Onvif, DHCP, SRT, GB/T 28181, Multicast, etc. |
General Specifications | |
Input Voltage | DC 12V/PoE |
Input Current | 1.0A（Max.） |
Operating Temperature | -10°C ~ 40°C |
Storage Temperature | -40°C ~ 60°C |
Power Consumption | 12W（Max.） |
Dimension | 238mm x 166.35mm x 131.8mm |
Net Weight | 1.35Kg |
