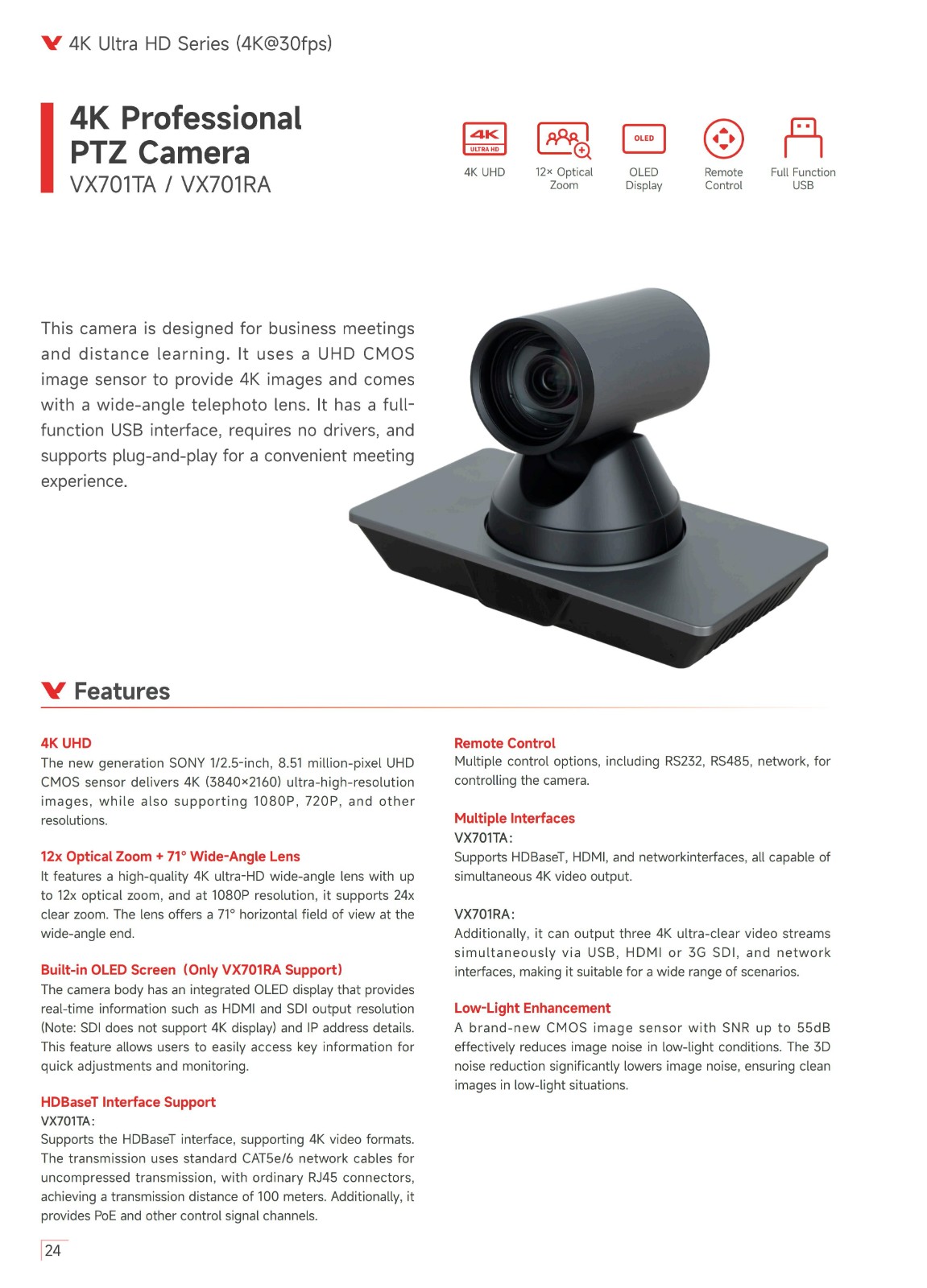

4K30P Professional PTZ Camera With HDBaseT
4K
12x Optical Zoom
HDMI+LAN+HDBaseT
4K UHD
1/2.5-inch UHD CMOS sensor with up to 8.51 megapixels offers 4K (3840x2160) UHD images. Moreover, it's downward compatible with 1080P, 720P and other resolutions.
HDBaseT Supported
Connect CAT5e/6 cable between HDBaseT interface and connector to transmit 4KP30 videos uncompressed to a distance of up to 70 m; furthermore, it can provide power (POE) and other control signal channels.
Multiple Interfaces
Simultaneous outputs of 4K videos (via HDBaseT, HDMI, and network) are supported.
71° Wide-angle Lens+12x Optical Zoom
The exclusively customized high-quality 4K ultra-wide-angle lenses with a real ultra-high resolution of 8 megapixels offer a 12x optical zoom and a Horizontal FOV of up to 71° .
Low Illumination
The new CMOS sensor with ultra-high SNR effectively reduces the image noise at under Low Illumination, while 3D noise reduction algorithms are used to greatly reduce the image noise and have clear images with SNR up to 55 dB or higher under extreme Low Illumination.
Remote Control
Through the RS232 and RS485 serial ports, the camera can be controlled remotely.

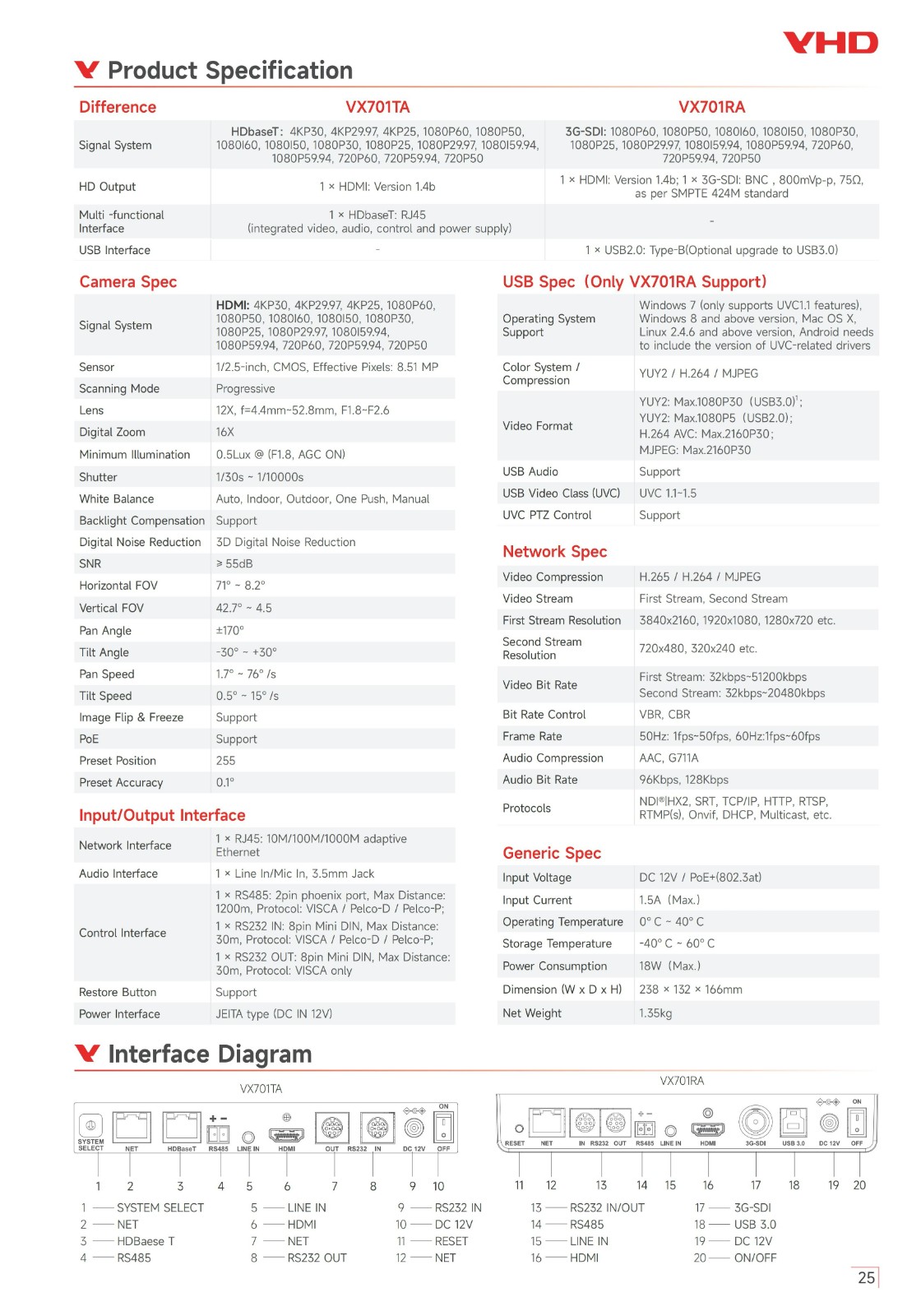

Model | VX701TA |
Name | 4K30P Professional PTZ Camera With HDBaseT |
Camera | |
Singal System | HDMI/HDbaseT: 4k/30, 4k/29.97, 4k/25, 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080i/59.94, 1080i/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, |
Sensor | 1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels |
Scanning Mode | Progressive |
Focal Length | 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
Minimum Illumination | 0.5Lux @ (F1.8, AGC ON) |
Shutter | 1/30s ~ 1/10000s |
White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
Backlight Compensation | Support |
Digital Noise Reduction | 3D Digital Noise Reduction |
SNR | ≥55dB |
Horizontal FOV | 71° ~ 8.2° |
Vertical FOV | 42.7° ~ 4.5° |
Pan Angle | ±170° |
Tilt Angle | ±30° |
Pan Speed | 1.54° ~ 82°/s |
Tilt Speed | 0.43° ~ 42.7°/s |
Image Flip | Support |
Preset Position | 255 |
Preset Accuracy | 0.1° |
Interfaces | |
HD Output | 1 x HDMI: Version 1.4b |
Multifunctional Interface | 1 x HDBaseT: RJ45, Video, Audio, PoE, control |
Network Interface | 1x RJ45: 10M/100M/1000M adaptive Ethernet, PoE Support |
Communication Interface | 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only |
Power Interface | JEITA type (DC IN 12V) |
Network Features | |
Video Compression | H.264 / MJPEG |
Video Stream | First Stream, Second Stream |
First Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576etc. |
Second Stream Resolution | 1920x1080, 1280x720, 720x576, 720x480, 320x240etc. |
Video Bit Rate | First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps |
Bit Rate Control | VBR, CBR |
Frame Rate | 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps |
Audio Compression | AAC、G711A |
Audio Bit Rate | 96Kbps, 128Kbps |
Protocols | TCP/IP, HTTP, RTSP, RTMP/RTMPS, Onvif, DHCP, SRT, GB/T 28181, Multicast, etc. |
General Specifications | |
Input Voltage | DC 12V |
Input Current | 1.0A (Max.) |
Operating Temperature | -10°C ~ 40°C |
Storage Temperature | -40°C ~ 60°C |
Power Consumption | 12W (Max.) |
Dimension | 238mm(W) x 166.35mm(H) x 131.8mm(D) |
Net Weight | 1.35kg |
