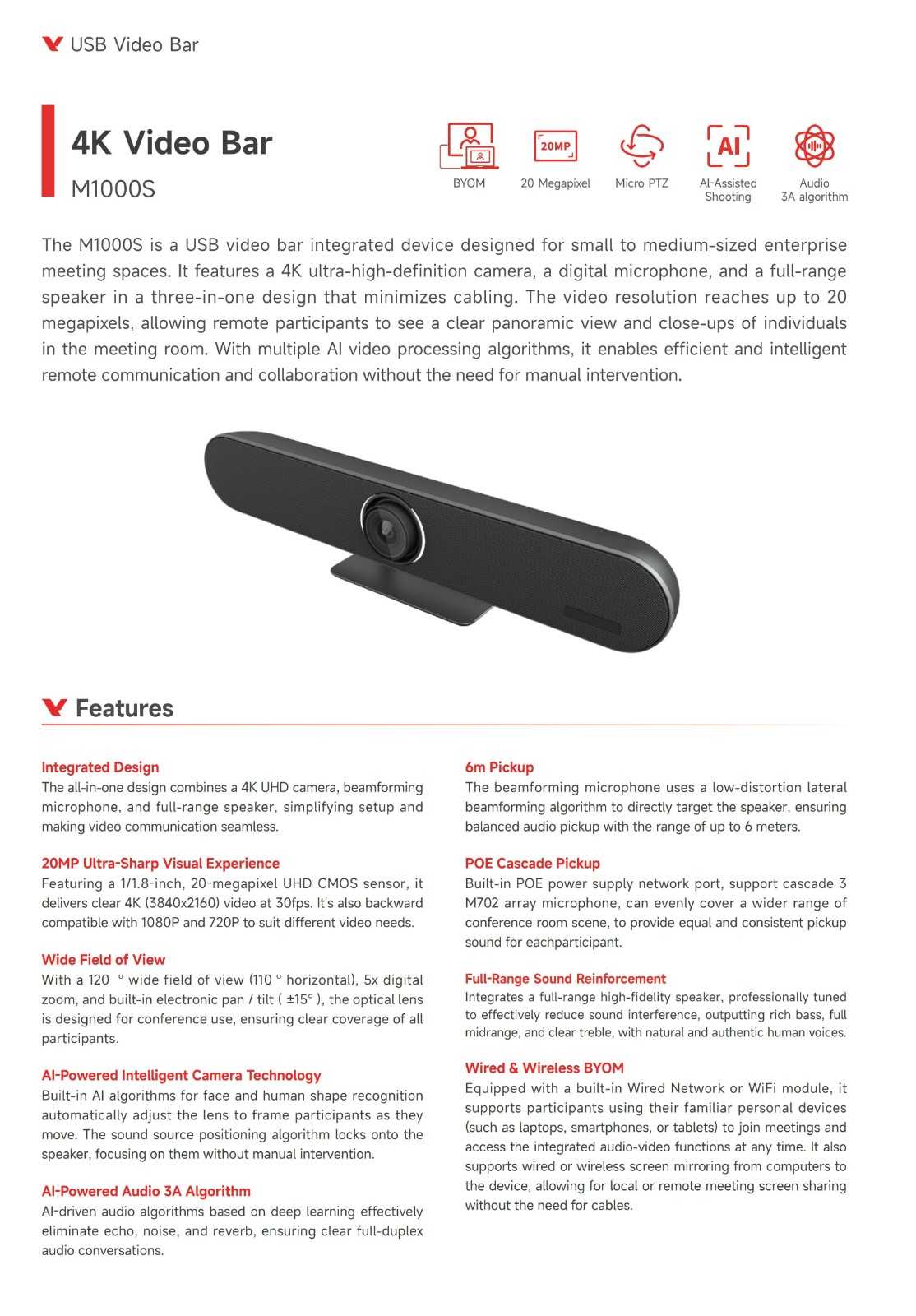

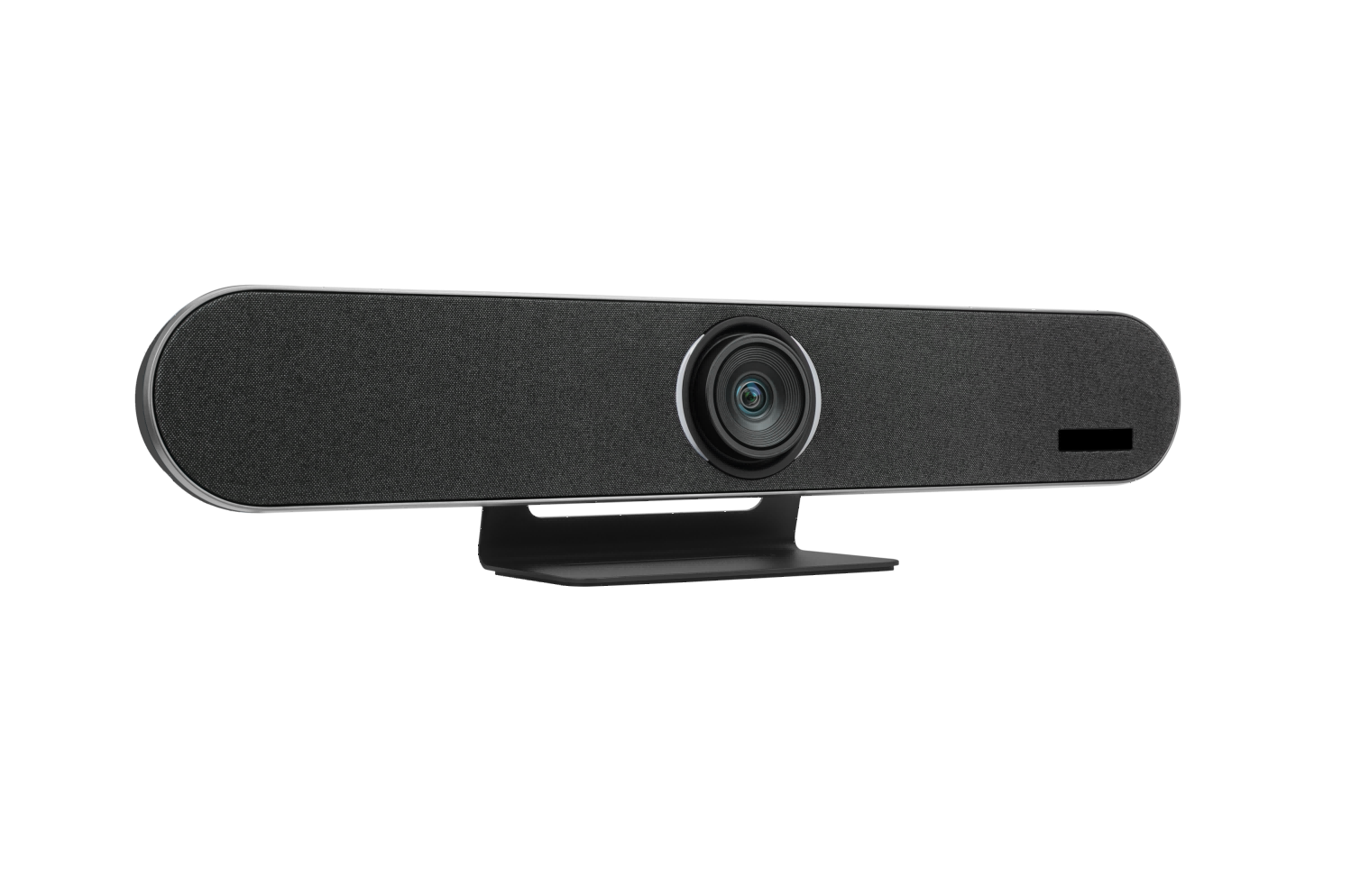

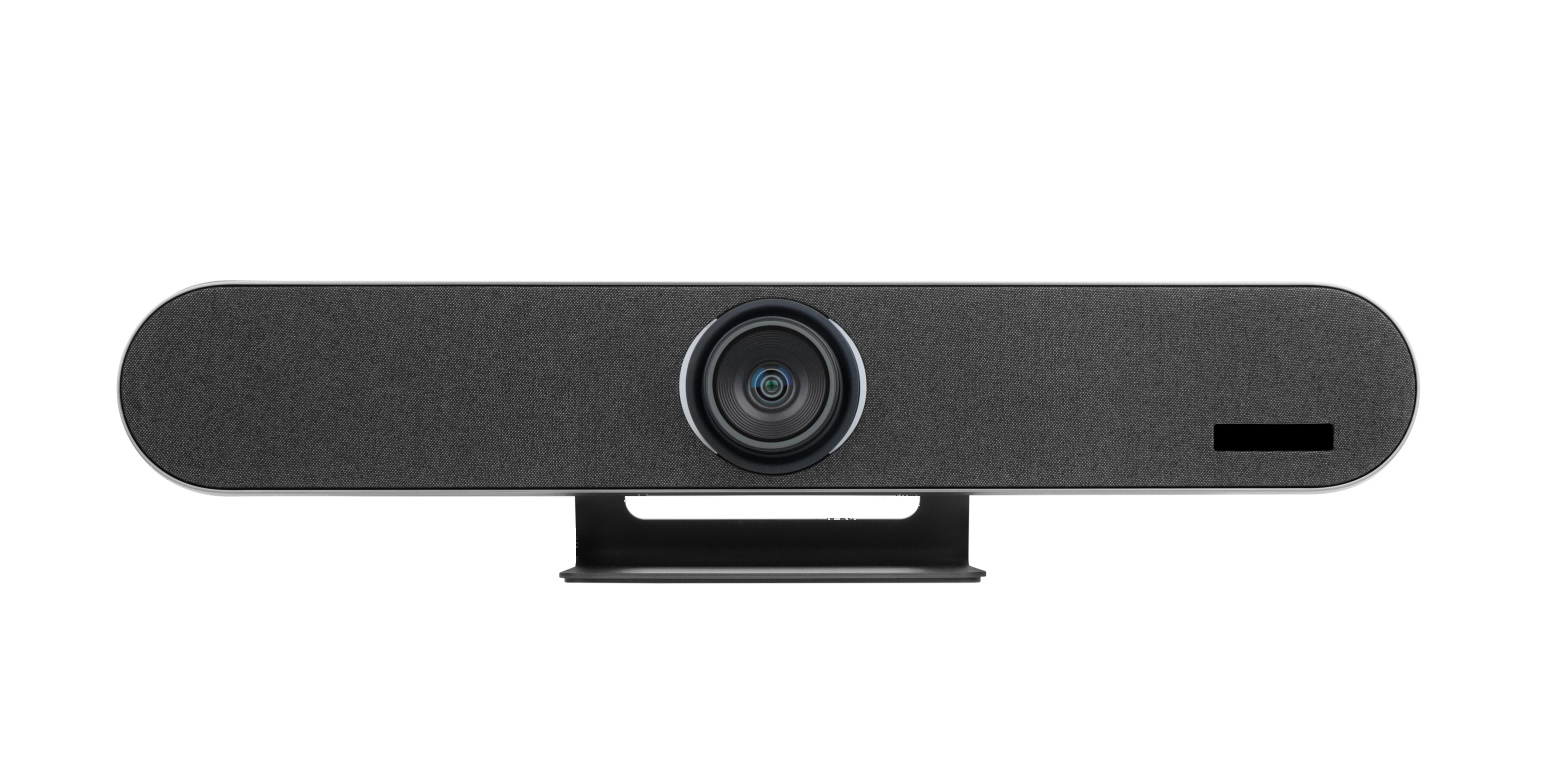

The M1000S is a USB video bar integrated device designed for small to medium-sized enterprise meeting spaces. It features a 4K ultra-high-definition camera, a digital microphone, and a full-range speaker in a three-in-one design that minimizes cabling. The video resolution reaches up to 20 megapixels, allowing remote participants to see a clear panoramic view and close-ups of individuals in the meeting room. With multiple AI video processing algorithms, it enables efficient and intelligent remote communication and collaboration without the need for manual intervention.
Integrated Design
The all-in-one design combines a 4K UHD camera,beamforming microphone, and full-range speaker, simplifying setup and making video communication seamless.
20MP Ultra-Sharp Visual Experience
Featuring a 1/1.8-inch, 20-megapixel UHD CMOS sensor, it delivers clear 4K (3840x2160)video at 30fps. It's also backward compatible with 1080P and 720P to suit different video needs.
Wide Field of View
With a 120 ° wide field of view (110 ° horizontal), 5x digital zoom,and built-in electronic pan /tilt（±15°)，the optical lens is designed for conference use,ensuring clear coverage of all participants.
AI-Powered Intelligent Camera Technology
Built-in AI algorithms for face and human shape recognition automatically adjust the lens to frame participants as they move. The sound source positioning algorithm locks onto the speaker,focusing on them without manual intervention.
AI-Powered Audio 3A Algorithm
AI-driven audio algorithms based on deep learning effectively eliminate echo, noise, and reverb, ensuring clear full-duplex audio conversations.
6m Pickup
The beamforming microphone uses a low-distortion lateral beamforming algorithm to directly target the speaker, ensuring balanced audio pickup with the range of up to 6 meters.
POE Cascade Pickup
Built-in POE power supply network port, support cascade 3 M702 array microphone, can evenly cover a wider range of conference room scene,to provide equal and consistent pickup sound for eachparticipant.
Full-Range Sound Reinforcement
Integrates a full-range high-fidelity speaker, professionally tuned to effectively reduce sound interference, outputting rich bass, full midrange,and clear treble,with natural and authentic human voices.
Wired &Wireless BYOM
Equipped with a built-in Wired Network or WiFi module, it supports participants using their familiar personal devices(such as laptops, smartphones, or tablets) to join meetings and access the integrated audio-video functions at any time. It also supports wired or wireless screen mirroring from computers to the device, allowing for local or remote meeting screen sharing without the need for cables.
