VHD New Generation 4K@60fps PTZ camera
NDI®|HX2
80.8° Ultra-Wide-angle
AI Tracking
Compatible with NDI®|HX2 Protocol
NDI is ideal for broadcasting including broadcast studios, live broadcast, gymnasiums, arenas, churches and lecture halls, thanks to its high SNR and ultra-low latency.
4K@60fps UHD Video
1/2.8-inch UHD CMOS sensor with up to 8.51 megapixels offers 4K (3840x2160) UHD images, downward compatible with 1080P, 720P and other resolutions.
Low Light
The application of 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keep the picture clean and clear, and the SNR of image is as high as 55dB.
HDMI 2.0
HDMI 2.0 supported; direct output of uncompressed 4K digital videos is available.
AI Tracking
Embedded NPU hardware uses the deep learning technology to extract the target's characteristics and allow smooth face tracking, no matter where the face is facing. The product is applicable to automatic tracking of speakers in lecture and presentation.
12x Optical Zoom
4K UHD lens with effective resolution of 8 megapixels, 12x optical zoom and FOV angle of up to 80° .
Multiple Interfaces
It supports HDMI 2.0 HD output, and also equipped with 3G-SDI interface, the effective transmission distance up to 150 meters (1080P30). HDMI, 3G-SDI, USB 3.0, LAN can simultaneously output 4 channels of high-definition digital signals.
Smart Exposure
The effects of projectors, TV and other devices on the people can be resolved effectively.
Built-in Gravity Sensor
Automatic image rotation supported for easy installation.
Remote Control
Through the LAN, RS232 and RS485 serial ports, the camera can be controlled remotely.

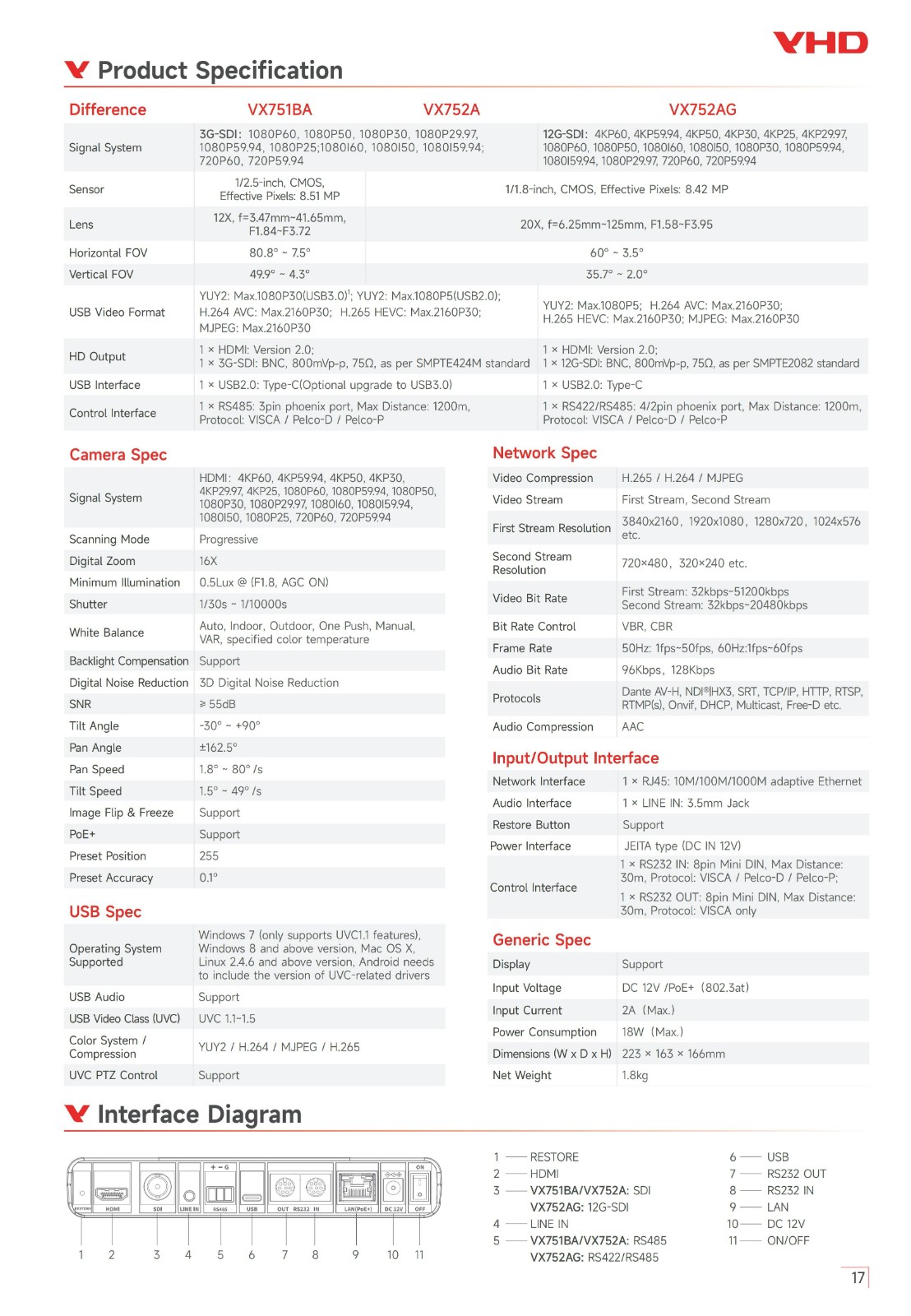

Model | VX751BA |
Name | 4K@60fps UHD Video Conference Camera |
Camera | |
Video Resolution | 4K/60, 4K/50, 4K/30, 4K/25, 4K/59.94, 4K/29.97; 1080P/60, 1080P/50, 1080I/60, 1080I/50, 1080P/30, 1080P/59.94, 1080I/59.94, 1080P/29.97; 720P/60, 720P/59.94 |
Sensor | 1/2.8 inches, CMOS, Effective Pixels: 8.40 Megapixels |
Scanner Mode | Progressive |
Focal length | 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
Digital Zoom | 16x |
Minimum Illumination | 0.5Lux @ (F1.8, AGC ON) |
Shutter Speed | 1/30s ~ 1/10000s |
White Balance | Auto, Indoor, Outdoor, One Push, Manual |
Backlight Compensation | Support |
Digital Noise Reduction | 3D Digital Noise Reduction |
S/N Ratio | ≥55dB |
Horizontal FOV | 80.8° ~ 7.5° |
Vertical FOV | 49.9° ~ 4.3° |
Pan Angle | ±170° |
Tilt Angle | -30° ~ +90° |
Pan Speed | 1.7°~ 100°/S |
Tilt Speed | 1.7°~ 69.9°/S |
Image Flip | Support |
Image Freeze | Support |
PoE | Support |
Preset Position | 255 |
Preset Accuracy | 0.1° |
USB Features | |
Operating System Supported | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
Color System / Compression | YUY2 / H.264 / MJPEG /H.265 |
Video Format | YUY2 : Max. 1080P/30; H.264 AVC: Max. 2160P/60; H.264 SVC: Max. 2160P/60; H.265 SVC: Max. 2160P/30; MJPEG: Max. 4K/30 |
USB Audio | Support |
USB video Communication Protocol | UVC 1.1~1.5 |
UVC PTZ Control | Support |
Network Features | |
Video Compression | H.265/H.264/MJPEG |
Video Stream | First Stream, Second Stream |
First Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576 etc. |
Second Stream Resolution | 720x576, 720x480, 320x240 etc. |
Video Bit Rate | 32kbps~51200kbps |
Bit Rate Control | Variable Bit Rate; Constant Bit Rate |
Frame Rate | 50Hz:1fps~50fps, 60Hz:1fps~60fps |
Audio Compression | AAC, G711A |
Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
Protocol | NDI®|HX2, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
Control Protocol | NDI® PTZ, VISCA Over IP |
I/O Interface | |
HD Output | 1x HDMI: Version 2.0; |
1x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard | |
Network Interface | 1x RJ45: 10M/100M/1000M adaptive Ethernet |
Audio Interface | 1x LINE IN: 3.5mm Jack |
USB Interface | 1x USB3.0, type-C type |
Control Interface | 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P; |
1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P; | |
1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only | |
Power Interface | JEITA type (DC IN 12V) |
General Specifications | |
Input Voltage | DC 12V / POE (802.3af) |
Input Current | 1.5A (Max.) |
Power Switch | Support |
Recovery key | Support |
IR Remote Input | Support |
Indicator lamp | Power State, Run State, TALLY Lamp |
Operating Temperature | -10°C ~ 40°C |
Storage Temperature | -40°C ~ 60°C |
Power Consumption | 12W (Max.） |
Dimensions | 223mm*155mm*166mm |
Net Weight | 1.8kg |
